- Beitian RTK GPS differential L1 + L5 high-precision GNSS built-in compass module BT - M002C M002 Beitian RTK GPS differential L1 + L5 high-precision GNSS built-in compass module BT - M002C M002
- Description
- Shipping & Returns

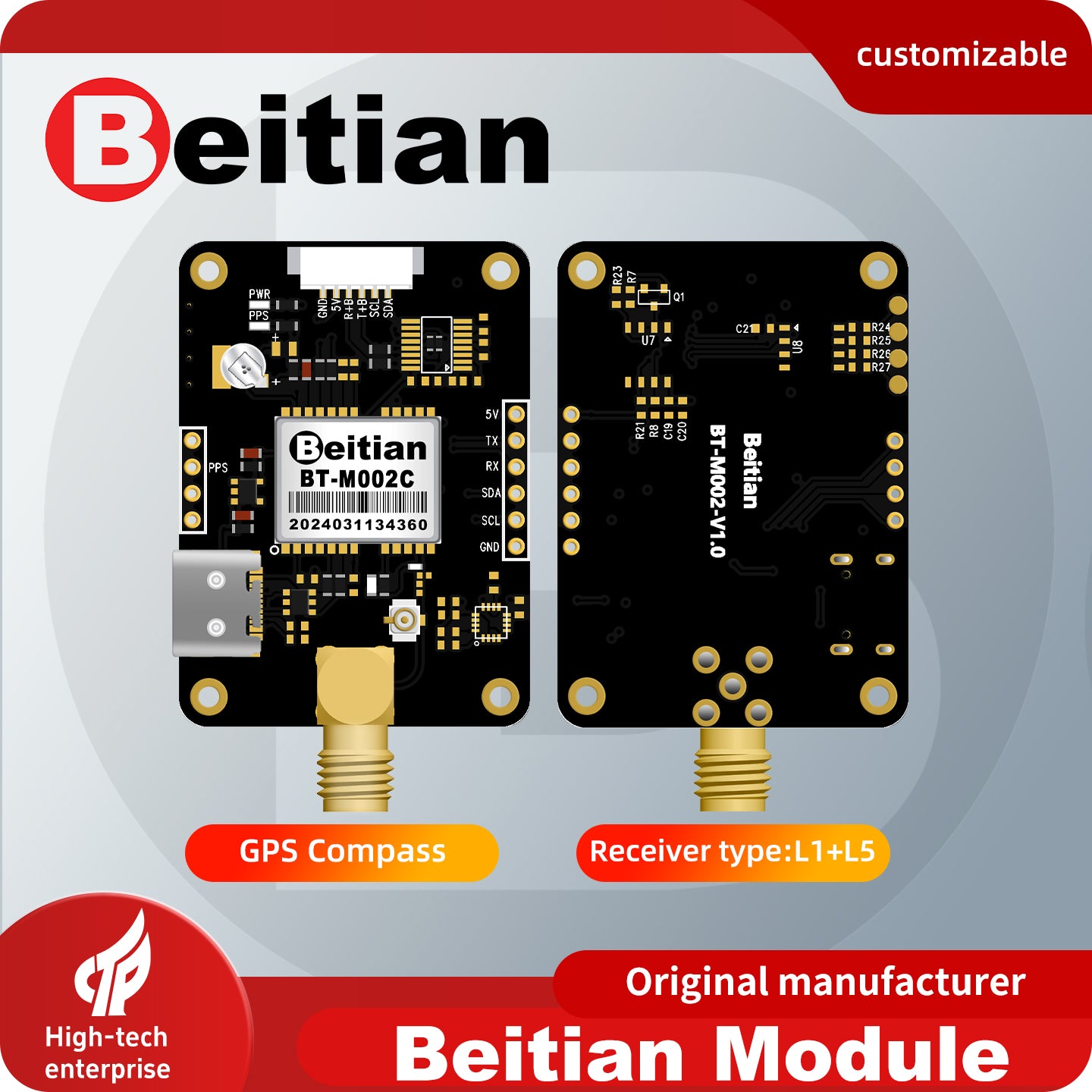

GNSS and Compass Integrated Module BT-M002C BT-M002
BT-M002C
Feature:
Chip:P20M
Frequency:GPS/QZSS: L1/L5 BDS : B1I/B2a GALILEO: E1/E5a GLONASS: G1 (optional)
Operating mode:GPS+BDS+GALILEO+SBAS+QZSS
Sensitivity:
Track:-165dBm
Re- arest:-160dBm
Capture sensitivity:-148dBm
Horizontal accuracy:1cm + 1ppm
Elevation accuracy:2cm + 1ppm
Speed accuracy:0.05m/s
Dymamic heading angle accuracy:0.3 deg
1PPS time accuracy: RMS 30ms 99% 60ns
Start Time:
Cold start :27s
Hot Start:2s
Convergence time:≤ 10s
Data Output:
Baudrate:115200bps
Output level:TTL level
Output protocol:NMEA0183,RTCM 3.3
NMEA sentences:RMC,VTG,GGAGSA.GSV,GLL
Update frequency:1Hz
Flash:with FLASH, the contguraton can be changed, and the power will not be lost
Second pulse:Configurable from 0.25 Hz to 10 MHz, the default period is 1s, and the high level lasts for 100ms
Operational Limits:
High:18km
Speed:<515m/s
Gravitational acceleration:<4g
Power consumption:
Voltage:DC 3.6V-5.5V, typical: 5.0V
Current:Normal 50mA/5.0V
Physical Specications:
Size:54*34*11mm
Weight:15g
Package:1 1.25 pitch 6pin with lock socket 1 USB interface Type-C
Surroundings:
Operating temperature:-40°C~ +85°C
Storage temperature:-40°C~ +105°C
LED:
Built-in LED: TX LED (blue. The data cutput, TX LED flashing)
PPS LED:No positioning, the light is off; after 3D positioning, the blue light flashes
Compass:Built-in with electronic compass IST8310
Indicator light:
1.Blue light, PWR light When power on, the red light is always on, indicating that there is power input
2.Red light, PPS light, the light does not turn on when it is not positioned; after 3D positioning, it starts to flash.
