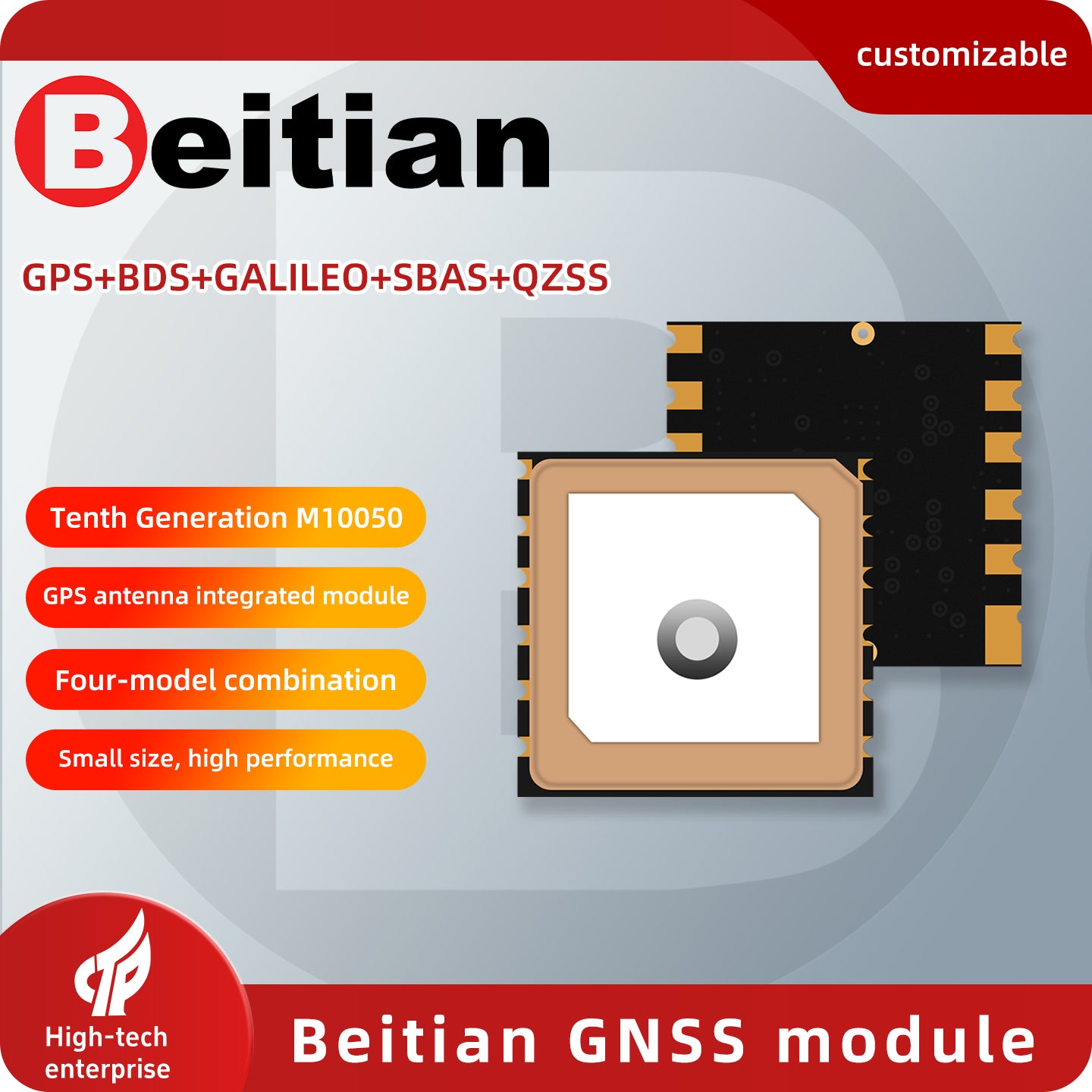

Beitian Patch Type GNSS handheld device GPS module with ceramic antenna UAV drone GPS QZSS and SBAS UBX M10050 chip BE-166
Feature:
Chip:M10050
Frequency:GPS LI CIA. QZSS L1 CIAS,BDS BII/B1C. Galileo E1B/C,SBASL1 C/A: WAAS, EGNOS, MSAS, GAGAN
Operating mode:GPS+BDS+GALILEO+SBAS+QZSS
Sensitivity:
Track:-166dBm
Re- arest:-160dBm
Cold start:-148dBm
Hot Start:-160dBm
Precision:
Horizontal accuracy:2.0m CEP 2D RMS SBAS Auxiliary (for Open Sky)
Speed accuracy:0.05m/s
Dymamic heading angle accuracy:0.3 deg
1PPS time accuracy: RMS 30ns 99% 60ns
Start Time:
Cold start :27s
Hot Start:1s
Assisted start:1s
Data Output:
Baudrate:4800bps-921600bps default 38400ps
Output level:TTL level
Output protocol:NMEA,UBX
NMEA sentences:RMC,VTG,GGAGSA.GSV,GLL
Update frequency:0.25Hz-18Hz default 1Hz
Flash:with FLASH, the contguraton can be changed, and the power will not be lost
Second pulse:Configurable from 0.25 Hz to 10 MHz, the default period is 1s, and the high level lasts for 100ms
Operational Limits:
High:80.000m
Speed:<500m/s
Gravitational acceleration:<4g
Power consumption:
Voltage:DC 3.6V-5.5V, typica3.3V
Current:Normal 25mA/3.3V
Physical Specications:
Size:16.2mm*16..2mm*7mm
Weight:6g
Package:12pin SMD package
Surroundings:
Operating temperature:-40°C~ +85°C
Storage temperature:-40°C~ +105°C
LED:
Built-in LED: TX LED (blue. The data cutput, TX LED flashing)
PPS LED(red. PPS LED not bright when GPS not fixed,flashing when fixed)
Pin definition:
Dimension
